Riselaser Handheld 1.5kW 2kW 3kW Laser Welding Machine , 3 In 1 Laser Cutting Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Keyword | 3 In 1 Handheld Laser Welding Machine | Key Factor | Laser Welding Machine Laser Cutting Machine Laser Cleaning Mavhine |
|---|---|---|---|
| Main Function | Welding + Cleaning + Cutting | Laser Type | GW CW Fiber Laser Or Raycus/ Max |
| Fiber Laser Power | 1500w/ 2000W / 3000W | Machine Weight | 160.00KG |
| With | Auto Wire Feeding System | Packing Weight | 180.00KG |
| Cooling Method | Water Cooling Chiller | Fiber Wire Length | 10M (Max 15M) |
| Size / Dimension | 74.5*51.6*71.0cm | Electrical Supply | 220±10% V AC, 50/60Hz |
| Highlight | CW Laser Welding Machine,2kW Laser Cutting Machine,3kW Laser Cleaning Machine |
||
Product Description

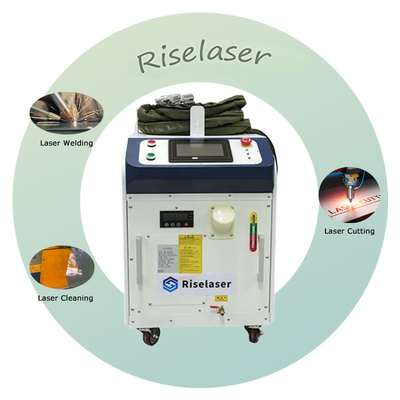

Riselaser Handheld Fiber Laser 1.5kW 2kW 3kW 3 In 1 Laser Welding Machine Laser Cutting Machine Laser Cleaning Machine
Machine Intro
The RL-F series from Riselaer is a versatile hand-held fiber laser welding machine equipped with both CW and pulse output modes. Its advanced weaving welding technology, adjustable focal length, and exceptional process consistency make it a preferred choice for welding stainless steel, iron, galvanized, and aluminum. Laser beam welding, which employs a focused laser beam to melt and join metal parts, is an effective method for producing narrow, deep welds at high rates, ensuring that the RL-F series delivers high-quality products for the laser industry.
Main Specs
| Laser Beam | Riselaser Handheld Fiber Laser 1.5kW 2kW 3kW 3 In 1 Laser Welding Machine Laser Cutting Machine Laser Cleaning Machine |
| Cooling | Built-in Water Cooling Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Main components
Automatic welding wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Welding methods supported
The laser head
6 different light spot modes (O, ●, 8, ◎, -, △)
Spot size can be adjusted between 0.2-5mm,
Simple operation, fingertip digital selection & adjustment
Can significantly improve the welding efficiency.
Can equipped with the automatic wire feeding devices
Water cooling chiller
Built-in industrial water cooling chiller, no external chiller required
Built-in water temperature alarm function, give you a safe production
Dual temp with dual control
Machine Main Factors
Laser machining has emerged as a cost-effective and high-quality manufacturing process that requires minimal tooling, making it an ideal choice for prototyping. Compared to conventional TIG welders, the RL-F handheld laser welder boasts four times faster welding capabilities.
To ensure operator safety, the RL-F comes equipped with safety design features. It is also easy to handle and consistently delivers high-quality results across a wide range of materials and thicknesses, while minimizing heat-affected zones for optimal aesthetics.
Other advantages of laser welding machines include low power consumption, low noise operation, and the ability to weld dissimilar and high melting point metals. The HW-A, which features an integrated design and compact size, can be used in various working environments.
In the Riselaer welding products lineup, the RL-F stands out as the smallest and lightest water-cooled laser welding system. Additionally, even less experienced operators can produce high-quality welds with this system.
Video Of the Riselaser 3-in-1 Laser Welding, Cutting, Cleaning Machine
