1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller

  • 1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller
  • 1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller
Place of Origin Shenzhen, China
Brand Name Riselaser Technology
Certification ISO, CE
Model Number RL-F1500/1000/2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hand Held Laser Welding Machine Fuction Laser Weldingn For Metals
Function Optional Cleaning / Cutting Laser Type GW CW Fiber Laser Or Raycus/ Max
Laser Power 1500w / 1000W 2000W Weight 160KG
Optional Equipment Wire Feeding Gross Weight 180.00KG
Cooling System Built-in Water Chiller Fiber Cable Length 10-15m
Equipment Dimension 74.5*51.6*71.0cm Electrical 220±10% V AC, 50/60Hz
Highlight

Water Chiller Handheld Laser Welder

,

Water Chiller Portable Laser Welding Machine

,

Handheld Laser Welder For Aluminum
Leave a Message
Product Description

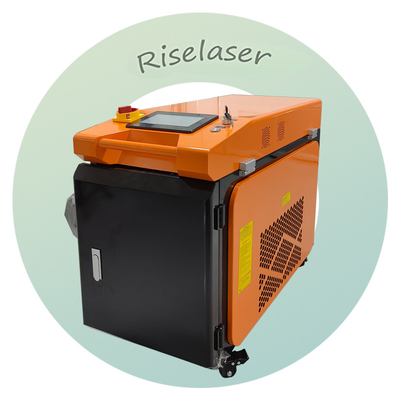

Portable Handheld Laser Welder For Aluminum Built In Water Chiller



Handheld Riselaser Welding Machine For Personal Industrial Use Aluminum Laser Welding Machine



Description

Riselaser has created a unique oscillating welding torch specifically for their handheld metal laser welding machine. This feature greatly improves the durability and excellence of welded joints, leading to improved weld flexibility. The machine can accomplish different types of welding, such as spot welding, straight seam welding, lap welding, girth welding, and orbital welding. The device also integrates an automatic wire feeder. Compared to conventional argon arc welding, the efficiency of the handheld laser welding machine is boosted by over 60%.



Specification

Product Name Handheld Riselaser Welding Machine For Personal Industrial Use Aluminum Laser Welding Machine
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 745*516*710mm
Weight 160kg








Main components

1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller 01500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller 1



Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm



Welding methods showcasing

1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller 2



Laser head

With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device

1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller 3



Water Chiller

The water cooling device features an integrated industrial chiller, eliminating the need for an external one. It also comes equipped with a built-in water temperature alarm function to ensure safe production. Additionally, it offers dual temperature dual control.





Packing showing

1500w 2000w 3000w Portable Handheld Laser Welder For Aluminum Built In Water Chiller 4



Why Riselaser

The outdated hot-melt welding system has been replaced by a hand-held welding torch that provides numerous benefits. Apart from the convenience it offers in welding molds, advertising characters, kitchen utensils, doors and windows, and other items, it also allows welding to be performed outdoors and extends the welding capabilities to larger and heavier objects that are challenging to move, such as stainless steel silos, spiral ducts, chimney pipes, and automotive steel pig feeders, with almost no size limitations. The fiber laser welding technology is anticipated to eventually replace traditional electric welding, argon welding, arc welding, and other methods.
The hand-held laser welding machine is user-friendly and produces aesthetically pleasing weld seams, with rapid welding speeds and no need for consumables. It can weld a variety of metal plates and pipes, including stainless steel, iron, galvanized, and carbon steel plates, as well as aluminum and brass plates and pipes.
