1500w 2000w 3000w Industrial Handheld Laser Welding Machine For Fiber Stainless Steel Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Name | Fiber Laser Welding Machine | Main Fuction | Laser Welding Machine For Metals |
|---|---|---|---|
| Optional Functions | Cleaning / Cutting, Or 3 In 1 | Laser | GW CW Fiber Laser Or Raycus/ Max |
| Laser Power | 1500w / 1000W 2000W | Net Weight | 160KG |
| Optional Equipments | Wire Feeding | Gross Weight | 180.00KG |
| Cooling Systems | Built-in Water Chiller | Fiber Cable Length | 10-15m Recommended |
| Equipment Dimension | 74.5*51.6*71.0cm | Electrical | 220±10% V AC, 50/60Hz， Customized 110V |
| Highlight | Industrial Handheld Laser Welding Machine,AC220V Aluminum Laser Welding Machine,Handheld Fiber Laser Welding Machine |
||
Product Description

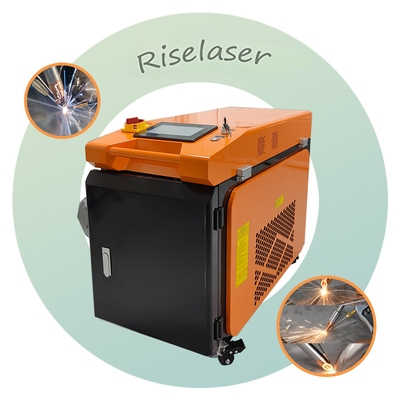

Industrial Handheld Laser Welding Machine For Fiber Stainless Steel Aluminum
Riselaser Handheld Fiber Laser Welding Machine Personal Industrial Use Stainless Steel Aluminum Laser Welding Machine
Fiber Laser Welding Machine Description
Riselaser developed a distinctive oscillating welding torch for their handheld metal laser welding equipment, which significantly enhances the durability and quality of welded joints, resulting in better weld adaptability. The welding machine can perform various welding types, including spot welding, straight seam welding, lap welding, girth welding, and orbital welding, and comes with an automated wire feeder. Compared to conventional argon arc welding, the handheld laser welding machine's efficiency has increased by more than 60%.
Fiber Laser Welding Machine Specification
| Product Name |
Riselaser Handheld Fiber Laser Welding Machine Personal Industrial Use Stainless Steel Aluminum Laser Welding Machine |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Main Components for this Handheld laser welding machine
Automatic wire feeder machine
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Welding methods showcasing
Laser heads
With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device
Water Chiller Description
The water cooling device has an industrial chiller integrated within it, which removes the need for an external one. Additionally, it has a built-in water temperature alarm feature that guarantees safe production. Furthermore, it provides dual temperature dual control.
Packing method showing
Why Riselaser
The outdated hot-melt welding system has been replaced by a hand-held welding torch, which offers numerous benefits. In addition to providing convenience in welding molds, advertising characters, kitchen utensils, doors and windows, and other items, this torch allows welding to be performed outdoors and expands welding capabilities to larger and heavier objects, such as stainless steel silos, spiral ducts, chimney pipes, and automotive steel pig feeders, with minimal size restrictions. Fiber laser welding technology is expected to eventually replace traditional electric welding, argon welding, arc welding, and other methods.
The hand-held laser welding machine is user-friendly and produces aesthetically pleasing weld seams at rapid welding speeds, with no need for consumables. It is capable of welding various metal plates and pipes, including stainless steel, iron, galvanized, and carbon steel plates, as well as aluminum and brass plates and pipes.
