1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel

  • 1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel
  • 1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-FM
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Output Power 3000W Usage Metal Stainless Steel Laser Welder
Place Of Origin Guangdong, China Focal Spot Diameter 0.5mm
Wavelength 1070 Dimensions 100*45*68cm
Laser Source Brand MAX Weight 140 KG
Application Metal Stainless Steel Laser Welder Laser Power 1500W/2000W/3000W
Cooling Method Water Cooliing Welding Depth 3mm
Function Stainless Steel Carbon Steel Aluminum Welding Working Voltage 220V±5V AC 50Hz
Highlight

Mini Handheld Metal Laser Welder

,

Stainless Steel Hand Held Welding Machine

,

1.5kW Hand Laser Welding Machine
Leave a Message
Product Description

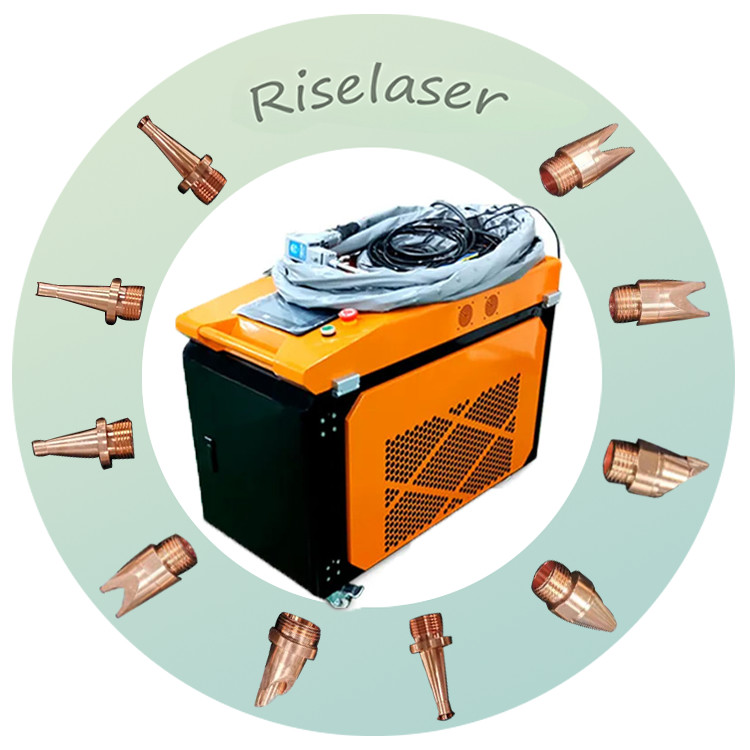

1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel



Riselaser Mini Portable Handheld Laser Welder For Metal 1.5kW 2kW 3kW Stainless Steel



Advantages

1.Qilin double wobble head offers multiple welding modes, including point, line, circle, triangle, ellipse, semi-circle, and eight-character.

2.The Qilin welding system includes a process package with definitions for 4 commonly used materials: stainless steel (SUS), carbon steel (CS), galvanized plate (SECC), and aluminum (AL).

3.Capable of welding 6mm thick stainless steel and carbon steel without the need for additional welding wire, with a power of 2KW.

4.Support for customization, allowing you to personalize the machine's appearance and add your own logo/design.

5.One-year warranty for the entire machine, with online technical support available after-sales.

6.No minimum order quantity (MOQ) requirement, offering wholesale pricing. For wholesale price inquiries, please contact us.



Parameters

Model No RL-F1500 RL-F2000 RL-F3000
Operating Mode Continuous Modulation
Cooling Mode Water Cooling
Power Requirements 220V±5V 50Hz
Machine Power 7KW 9KW 12KW
Operating Cooling Temperature Range 20℃-40℃
Working Environment Humidity Range <70 No Condensation
Welding Thickness ≤3mm ≤6mm ≤8mm
Gross Weight(Including Package) 160kg
Fiber length 10m
Machine Size 100×45×68CM



1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel 0

1.5kW 2kW 3kW Mini Handheld Metal Laser Welder For Stainless Steel 1



FAG

1.How long is the warranty period?

Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable?

Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded

1-8mm thick metal materials.

4.Is there a wire feeder?

We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded?

Yes, it can.

6.Packaging

All our machines are packed in wooden boxes.

7.Language interface

Supports language customization, etc. You can also translate and insert to software.
