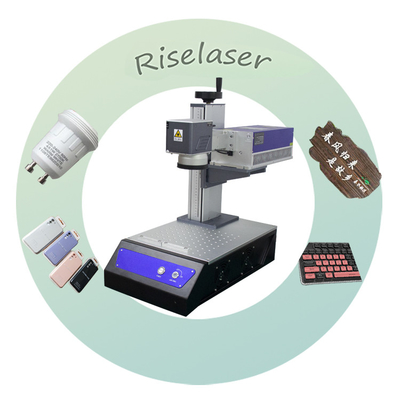

355nm Portable UV Laser Engraver Marker High Precision For Wood Non Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 35 KG | Marking Area | 110*110mm |
|---|---|---|---|
| Laser Wavelength | 355nm | Frequency Range | 20kHz-200kHz |
| Unfocused Beam Roundness | ≤96% | Machine Size | L670*W320*H670mm |
| Cooling Mode | Air Cooling | Laser Source Brand | Geradium |
| Highlight | Portable UV Laser Engraver Marker,355nm UV Laser Engraver,UV Laser Marker For Wood |
||
Product Description
355nm Portable UV Laser Engraver Marker High Precision For Wood Non-metal 3W 5W 10W
- This DPSS UV laser operates at 355nm with an average output power exceeding 3W at a frequency of 30KHz.
- It is capable of marking various materials such as plastic, regular metals, wood, leather, fruits, ceramic, and more.
- The laser emits a short wavelength of 355nm, producing a small laser spot that enables precise and intricate marking.
- Utilizing a cold processing method, the laser generates minimal heat, ensuring no thermal deformation occurs on the material surface.
- The laser's compact and portable design allows for easy transportation, and it can be conveniently connected to a PC or laptop for immediate use.
- Equipped with an RS-232 serial port line, the machine can be remotely controlled by a computer.
- It comes with a professional JCZ marking board and EZcad2 software, guaranteeing accurate and reliable marking results.
- The laser is equipped with a high-effective aluminum cooling module, featuring 7 cooling fans and a narrow air duct to achieve rapid cooling.
- With a laser lifespan exceeding 20,000 hours, aging components can be replaced to extend its operational life.
Product Paramenters
| Item | Data |
| Pulse Width | ≤15ns@30KHz |
| Max Marking Speed | 2000mm/s |
| Mininum Character Size | 0.15*0.15mm |
| Beam quality | M2＜1.2 |
| Pulse Repetition Frequence | 10 KHz - 150 KHz |
| Environment Requirement | Working temp: 18°-26°,Humidity: 30% - 85%. |
| Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
| Cooling ways | Air cooling |
FAQ
1.How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable? Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded 1-8mm thick metal materials.
4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded? Yes, it can.
6.Packaging All our machines are packed in wooden boxes.
7.Language interface Supports language customization, etc. You can also translate and insert to software.
