355nm Uv Laser Marking Machine Mini 3w 5w High Precision For Non Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Laser Marking | Weight | 35 KG |
|---|---|---|---|
| Marking Area | 110*110mm | Core Components | Laser Source |
| Configuration | Bench-top | Working Accuracy | 0.01mm |
| Cooling Mode | Air Cooling | Machine Size | L670*W320*H670mm |
| Highlight | 355nm uv laser marking machine,3w uv laser marking machine,uv etching machine |
||
Product Description

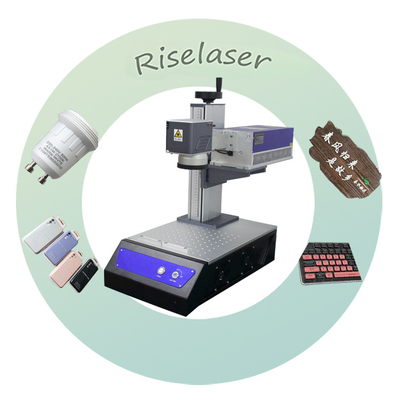

355nm Mini 3W 5W High Precision UV Laser Marking Engraving Printing Machine Non Metal
- The 355nm DPSS UV laser boasts an average output power exceeding 3W@30KHz.
- Its applications include marking on various materials such as plastic, regular metals, wood, leather, fruits, ceramic, etc.
- Utilizing a short wavelength of 355nm, this laser can generate a tiny laser spot, resulting in an intricate marking effect.
- Employing a cold processing method, it produces minimal heat and ensures no thermal deformation on the material surface.
- Thanks to its small and portable design, it can easily connect to a PC or laptop for immediate operation.
- Additionally, it comes equipped with an RS-232 serial port line, allowing for computer remote control of the machine.
- The inclusion of the professional JCZ marking board and EZcad2 software ensures precise and accurate marking effects.
- Its high-effective aluminum cooling module incorporates seven cooling fans and a narrow air duct, providing rapid cooling.
- The laser boasts a lifespan exceeding 20,000 hours. After this period, users can replace aging components to extend its lifespan.
Parameter
| Item | Data |
| Pulse Width | ≤15ns@30KHz |
| Max Marking Speed | 2000mm/s |
| Mininum Character Size | 0.15*0.15mm |
| Beam quality | M2＜1.2 |
| Pulse Repetition Frequence | 10 KHz - 150 KHz |
| Environment Requirement | Working temp: 18°-26°,Humidity: 30% - 85%. |
| Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
| Cooling ways | Air cooling |
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
