Desktop 40W Mini Portable Jewelry Laser Welding Machine for Gold Silver Stainless Steel Jewellery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Jewelry Welding Dental Usage | Selling Key Point | Laser Soldering |
|---|---|---|---|
| Operation | Touch Screen Control | Size | Dia 29.5cm X H 28.2cm |
| Weight | 13.5kg | Laser Width | 0.1-10ms |
| Aiming And Positioning | Microscope + HD Digital CCD Camera System | Max Pulse Energy | 40J |
| Main Application | Jewelry Watchwear Welding, Repair | Display Touch Screen | 10X High Quality Colorful Digital CCD |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | Wooden Package Dimension | 40x45x48CM |
| Highlight | 40W Jewelry Laser Welding Machine,Desktop Jewelry Laser Welding Machine,Mini Portable Jewelry Laser Welding Machine |
||
Product Description

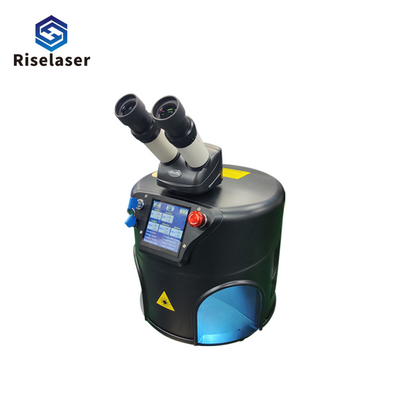

Magic Box 40W 40J Jewelry Laser Welding Machine Glasswear Detal Lab Use
Magic Box 40W 40J Laser Spot Welding Machine For Jewelry Glasswear Laser Welding Machine Detal Lab Use
Machine Description
The Magic Box welder is an advanced welding machine that boasts cutting-edge technology for exceptional performance. Its digital microprocessor enables it to operate ten times faster than conventional systems, while accurately measuring high energy levels. This versatile machine is loaded with features including automatic regulation of power supply in real-time, a dual light LCD touch screen shutter, and an integrated internal camera for enhanced precision. Its laser light is automatically controlled to adjust the energy, ensuring consistent and accurate results.
The Magic Box welder also offers superior cooling with efficient air cooling and six preset pulse shaping programs, as well as argon gas nozzles for direct welding. Workpieces in the working chamber are cooled by the air nozzles, and the large drawer makes chamber cleaning effortless. With 50 memory parameters, low noise, and low maintenance operation, the Magic Box welder is a dependable and powerful addition to any welding setup. Don't wait, order yours today!
Machine specification
| Model | Magic Box 40W 40J | |
| Laser Type | 1064nm YAG Laser | |
| Beam Diameter | 0.2-2.0mm | |
| Pulse Width | 0.1-10ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | |
| Host Power Consumption | ≤1.5KW | |
| Cooling System | Convective air cooling | |
| Pump Source | Xenon lamp | |
| Aiming and Positioning | Microscope + HD digital CCD camera system | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful Digital CCD | |
| Operating Language | English, Chinese | |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | Ø295mm x H282mm | |
| Wooden Package Dimension | 40x45x48CM | |
| Machine Net Weight | 13.5KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |
Main features of the Magic Box
1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.
2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.
3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot

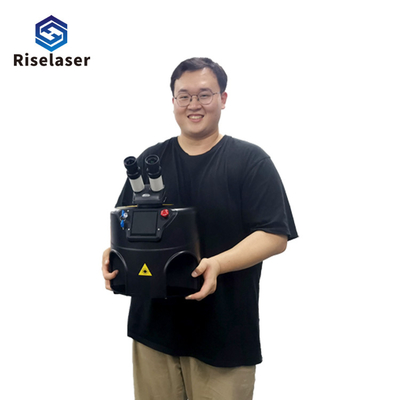

4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.
4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
5. Easy to use for both novice and mature operators
Machine characteristics

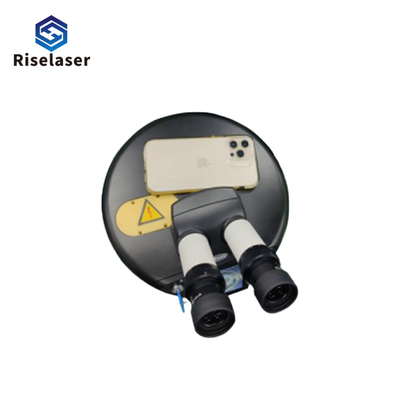

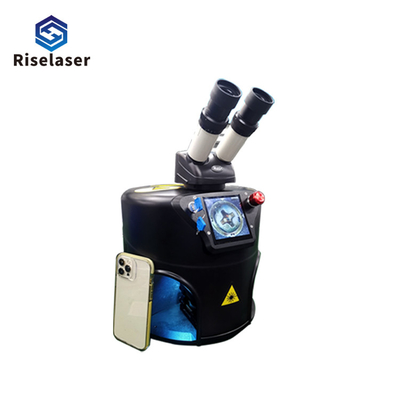

Comparing a Magic Box to a Mobile Phone in Terms of Picture Quality
Machine dimension

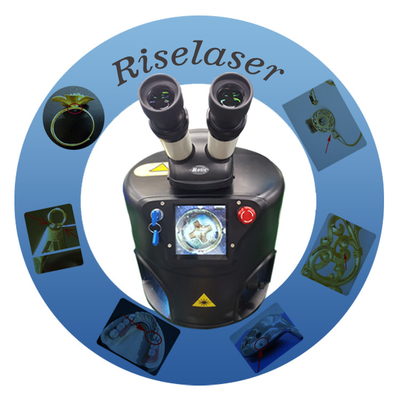

Application of Laser Technology
Using laser technology, precious metals such as platinum, titanium, silver, and palladium can be seamlessly welded with ease. When soldering components using laser technology and solder material, the joints become precise and clean, eliminating the need for additional cleaning. In addition, laser technology can be employed to remedy casting defects such as blowholes or breakage. The process involves soldering the affected area with wire solder, which results in a flawless repair.
Machine package
Machine operation display
