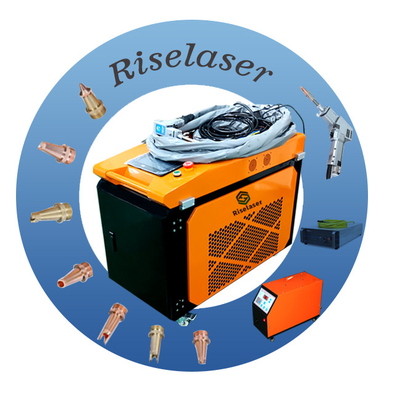

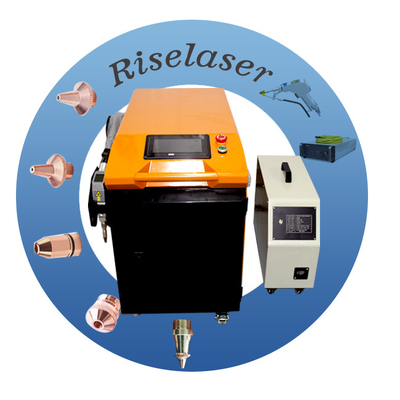

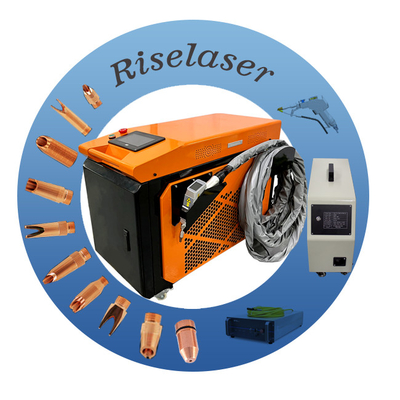

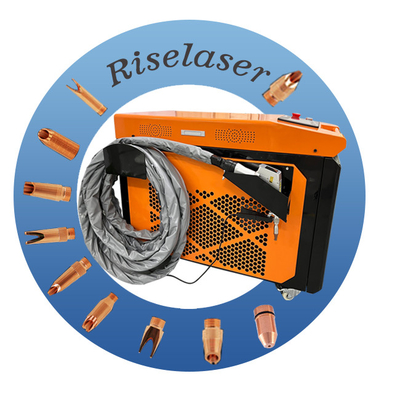

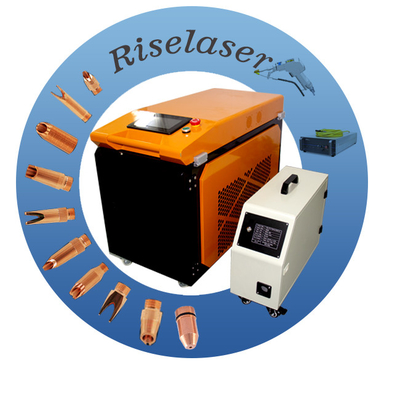

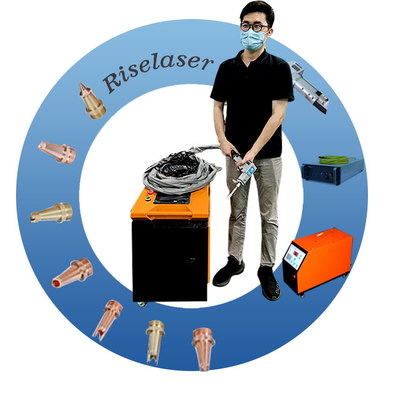

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function

  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
  • RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-FM
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Power 1.5KW/ 2KW/ 3KW Warranty 1 Year
Marketing Type Ordinary Product Machine Size 100×45×68CM
Weight (KG) 140 KG Key Selling Points Competitive Price
Applicable Industries Building Material Shops, Printing Shops, Farms, Construction Works , Garment Shops, Restaurant, Advertising Company, Machinery Repair Shops, Food & Beverage Shops, Food Shop, Retail, Energy & Mining, Manufacturing Plant, Food & Beverage Factory, Hotels, Ho Machinery Test Report Provided
Video Outgoing-inspection Provided Warranty Of Core Components 1 Year
Core Components PLC, Pressure Vessel, Gearbox, Pump, Engine, Motor, Gear, Bearing Brand Name Riselaser
Wavelength 1070 Focal Spot Diameter 0.5mm
Dimensions 100*45*68cm Laser Head Brand Support Customization
Servo Motor Brand Support Customization Guiderail Brand Support Customization
Control System Brand Support Customization Laser Source BWT Laser Source
Welding Depth 3mm Cooling Method Water Cooling
Highlight

3-in-1 Fiber Laser Welding Machine

,

Laser Welding Machine with Cutting Cleaning

,

3 in 1 laser welding machine
Leave a Message
Product Description

Handheld Fibre Laser Welder 1.5kw Metal Fiber Laser Welding Machine Qilin Double Wobble Head Laser Fiber Welding Machine

1.Qilin double wobble head has multiple welding modes:point, line, circle, triangle, ellipse, semi-circle,eight-character.
2.The process package reserved for Qilin welding system includes: There are 4 common use materials, definitions as follows:
SUS: stainless steel // CS: carbon steel
SECC: Galvanized plate // AL: aluminum
3.2KW can weld 6mm thick stainless steel and carbon steel without adding welding wire.
4.Support customization:make your own logo/design the appearance of the machine.
5.The whole machine is guaranteed for one year, and online technical support after-sales.



Product Parameters

Model No
RL-F1500
RL-F2000
RL-F3000
Operating Mode
Continuous Modulation
Cooling Mode
Water Cooling
Power Requirements
220V±5V 50Hz
Machine Power
1.5KW
2KW
3KW
Operating Cooling Temperature Range
20℃-40℃
Working Environment Humidity Range
<70 No Condensation
Welding Thickness
≤3mm
≤6mm
≤8mm
Gross Weight(Including Package)
160kg
Fiber length
10m
Machine Size
100×45×68CM



Product Details

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 0

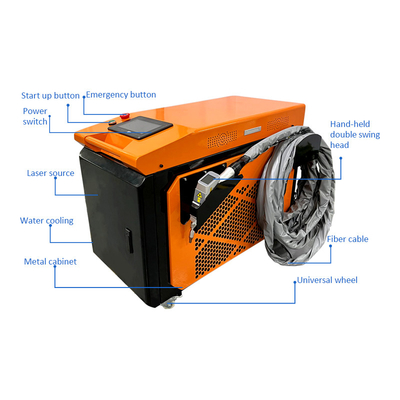

Machine  Configuration

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 1RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 2



Video Showcasing


RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 3



Product Application

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 4

Sample Display

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 5



Certificate

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 6



Product Exhibition

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 7



Customer Feedback

RL 3-in-1 Handheld Portable 1500w 2000w 3000w Fiber Laser Welding Machine with Cutting Cleaning Function 8



FAQ

Q1: Why is the light coming out very strong at first and slowly becoming weak/weak, resulting in no fuse or spark at the copper nozzle?

A: 1. Usually it is that the welding gun lenses to be damaged, including but not limited to protective mirrors, focusing, collimation and reflection. Any one or more of these damages can cause this to happen.
2. Replace the protective lens and look at the focus at first, and then check the reflection and collimation. And in the end to replace the damaged lens.
3. Also check the laser fiber tip for whether it is dirty or be damaged or not.



Q2: What are the various causes of lens damage?

A: 1. Classification of damage: the abnormal of motor swing caused by interference, or the red light is too biased to be adjusted. And the sealing ring will burn out together commonly in this situation.
2. Convex damage to the lens: it is generally common to be seen in pollution, such as unprotected when replacing, and the form is a punctate black spot.
3. Damage to the plane of the lens: due to laser diffuse reflection, most of them are caused by reflection, forming a focal point on the lens, and burning out the coating. In this situation, the form is white spots. Convex surfaces also have this form, and the formation principle is consistent with it.



Q3: How to avoid frequent burning of the lens (preventive measures)?

A: 1. Use original lenses
2. Pay attention to prevent from pollution when in the replacing process.
3. Do not weld vertically as much as possible, especially when in the process of welding highly reflective materials.
4. Regularly clean the protective lenses
5. Replace the damaged protective glasses in time.



Q4: How to weld galvanized sheet?

A: If it is tailor welding, it can be welded directly without considering the zinc layer. In the case of stitch welding, a gap (about 0.1mm) needs to be added in the middle, so that the zinc vapor will overflow, and the welding shape will be better. If there is no gap, the zinc layer of the bonding surface can be polished off, and then welded as in welding carbon steel.



Q5: What is the welding penetration related to?

A: The welding penetration depth is related to the core diameter of the laser. If the welding depth is required, a laser source with a smaller core diameter can be selected.



Q6: How does the welding workpiece not deform?

A: Fast enough welding speed and good fixtures are needed to ensure that the workpiece is clamped firmly, and then it is removed after a period of welding. If you think the workpiece will be deformed, you can reverse the deformation of the workpiece first, and cancel the positive and negative phases.
