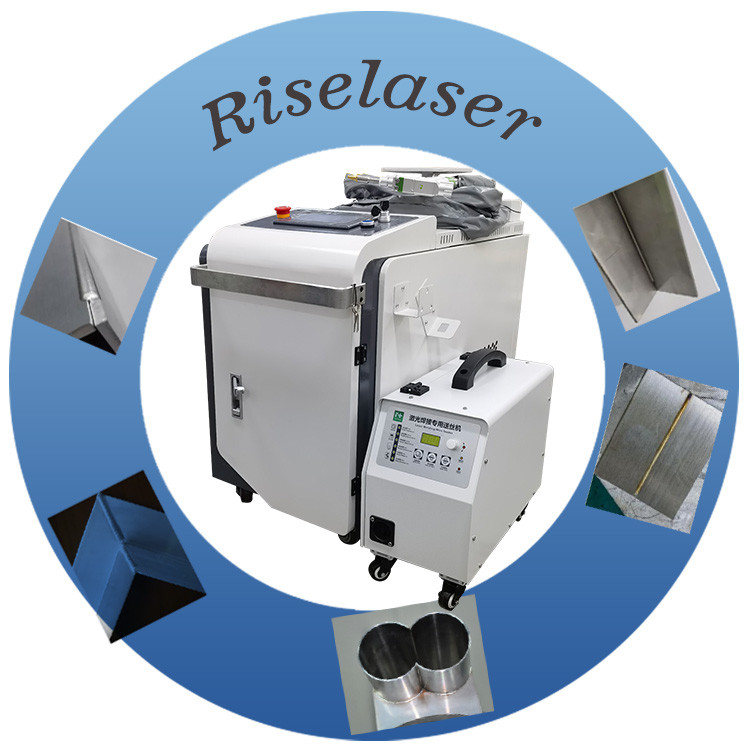

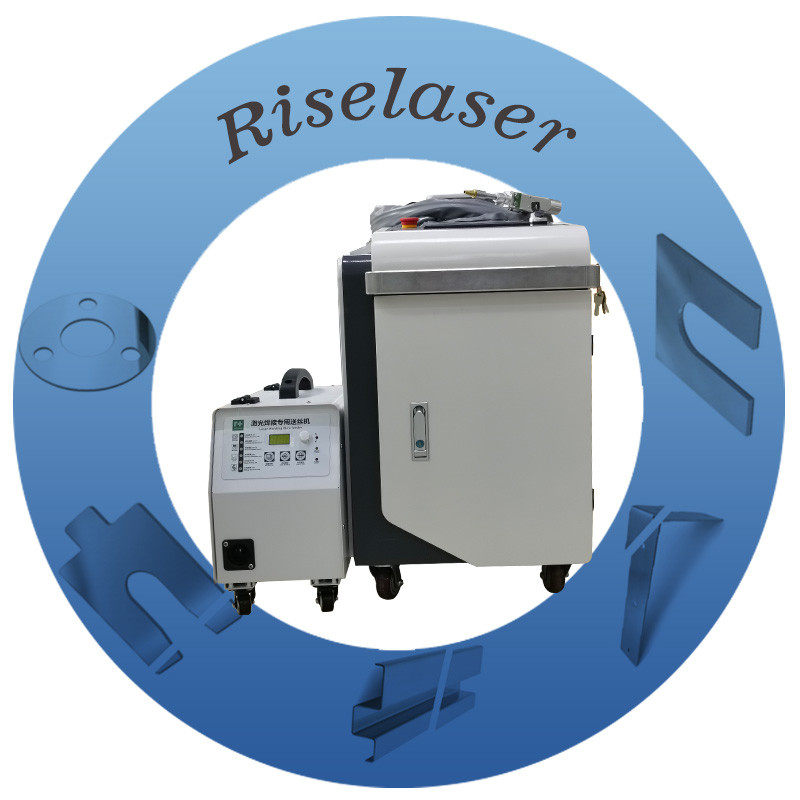

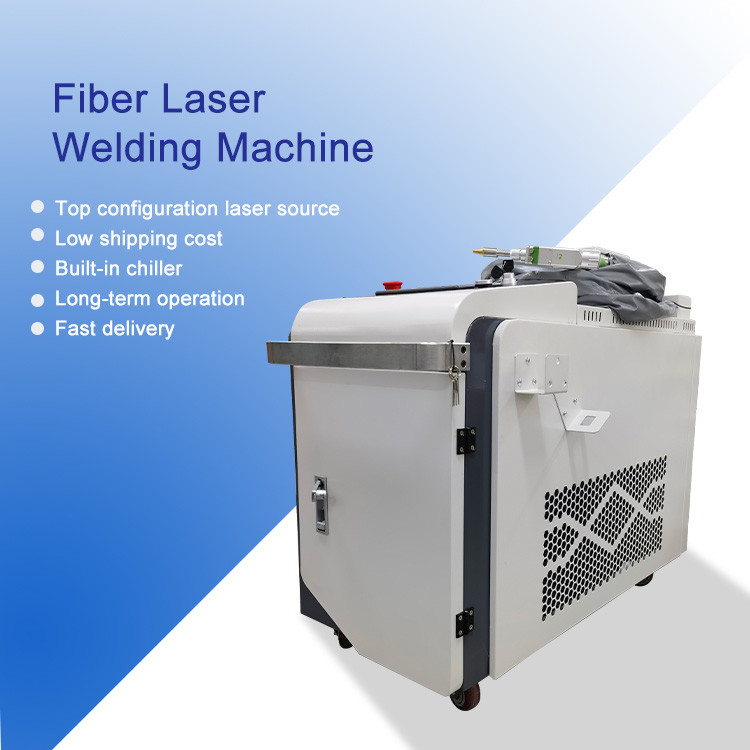

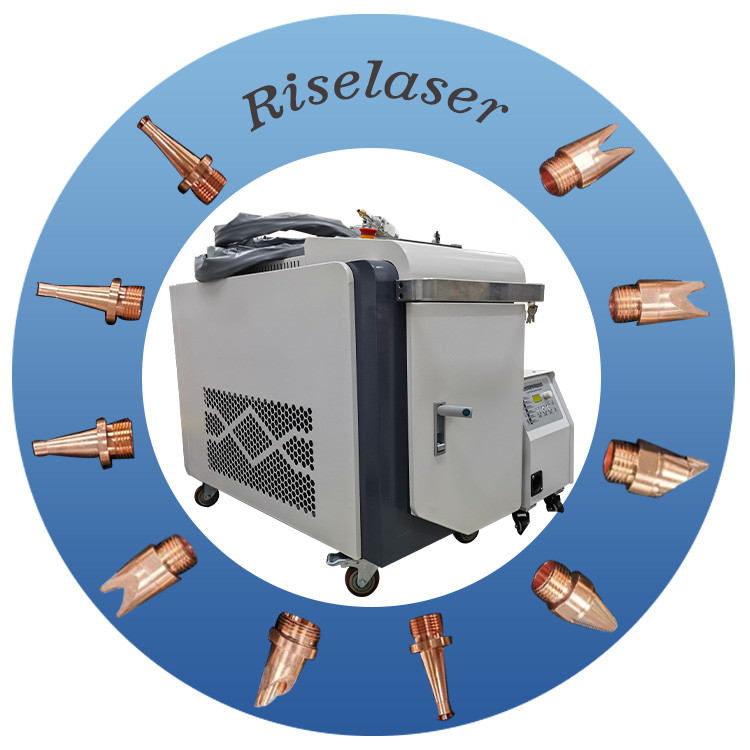

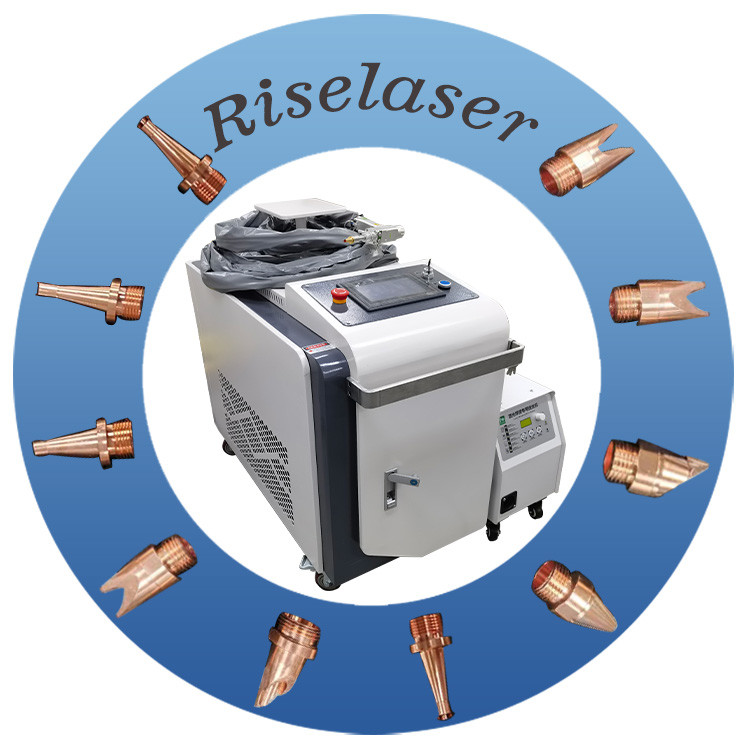

Multifunctional 3 In 1 Handheld Laser Welding Cleaning Cutting Machine 1500w 2000w 3000w

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFiber Interface | QBH | Wavelength Range | 1070±20nm |
---|---|---|---|
Rated Power | 1500w/2000w | Collimating Focal Length | F50mm |
Scanning Speed | 20000mm/s | Auxiliary Gas Pressure | ≥0.5~0.8Mpa |
Weight | 190KG | ||
Highlight | 3 In 1 Handheld Laser Welding Cleaning Cutting Machine,1500w Handheld Laser Welding Machine,2000w Handheld Laser Welding Machine |
Product Description
The internal design of handheld welding machine is intelligent, and the interactive control system expands the tolerance range and weld width of the machined parts, solves the short comings of small spots, and makes the weld better. The lightweight and flexible handheld welding head ensures the welding accuracy of various angles and positions. Infrared positioning is used to achieve accurate and beautiful welding. Welding speed is fast, easy to operate, saving time and cost. With a deep laser welding depth, strong weldability, suitable for complex welding tasks. Plus, the whole body of Jiaqiang welding head adopts water cooling design, which is more stable and durable. If you are interested in our products, please leave a message or contact us for your quotation.
Product Advantages
- Intelligent Design The internal design is smart, the interactive control system expands the tolerance range of the processed parts and the width of the weld seam, it solves the disadvantage of small light spot and makes the weld seam better;
- Bulk Dominance Full body water cooling design, the stability is more durable.
- Alarm Function Intelligent protection system,mobile terminal APP and PC monitoring,real time feedback of working status.
- Cleaning Advantage Fast speed, no consumables, no welding marks, no discoloration, no need for later polishing.
Intelligent protection system,mobile terminal APP and PC monitoring,real time feedback of working status.
Fast speed, no consumables, no welding marks, no discoloration, no need for later polishing.
Product Parameters
Laser Type | 1080nm Fiber Laser |
Nominal Laser Power | 1500W/2000W |
Cooling System | Air Cooling |
Way of working | Continuous |
Speed range of welder | 0~120 mm/s |
Focal Spot Diameter | 0.5mm |
Ambient temperature range | -20℃~45 ℃ |
Environmental humidity range | <70% without condensation |
Welding thickness | 0.5-3mm |
Welding gap requirements | ≤1.2mm |
Operating Voltage | AC 220V |
Machine Dimensions | 58*34*78CM |
Net Weight | 180kg |
Fiber length | 6m |
Welding penetration parameters
|
||
Material
|
Output power (W)
|
Maximum penetration (mm)
|
Stainless steel
|
1000
|
0.5-3
|
Stainless steel
|
1500
|
0.5-4
|
Carbon steel
|
1000
|
0.5-2.5
|
Carbon steel
|
1500
|
0.5-3.5
|
Aluminum alloy
|
1000
|
0.5-2.5
|
Aluminum alloy
|
1500
|
0.5-3
|
Galvanized sheet
|
1000
|
0.5-1.2
|
Galvanized sheet
|
1500
|
0.5-1.8
|
